Technical Drawings PRECISION LANDING™ Personnel Elevator
Below you will find standard dimensions and capacities for the Precision Landing™️ Personnel Elevator.
These drawings show tower options for use where there is no existing hoistway or no structure to attach guide rails.
![](https://www.humphrey-manlift.com/wp-content/uploads/2020/02/350_LBS-CAPACITY_Elevator_Tech_Drawing_2-1.png)

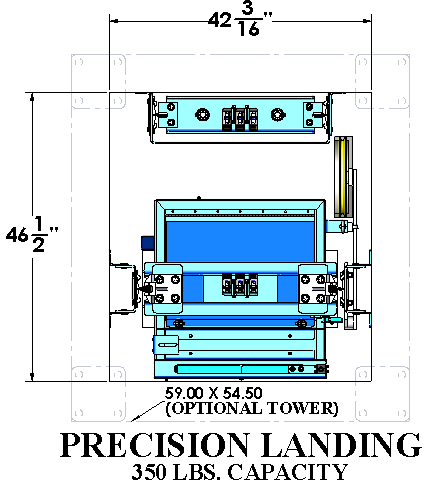

This technical drawing is for the 350 lbs capacity elevator.
![](https://www.humphrey-manlift.com/wp-content/uploads/2020/02/650_LBS-CAPACITY_Elevator_Tech_Drawing_2-1.png)

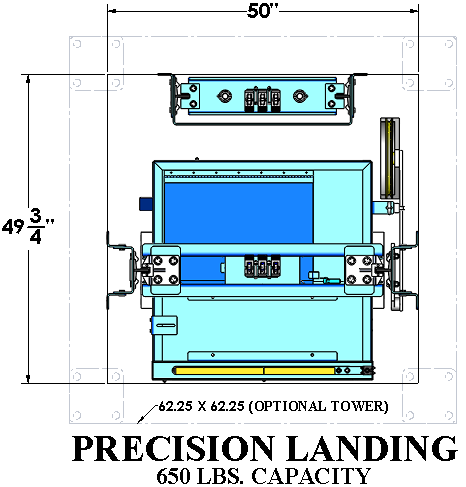

This technical drawing is for the 650 lbs capacity elevator.
![](https://www.humphrey-manlift.com/wp-content/uploads/2020/02/1000_LBS-CAPACITY_Elevator_Tech_Drawing_2.png)

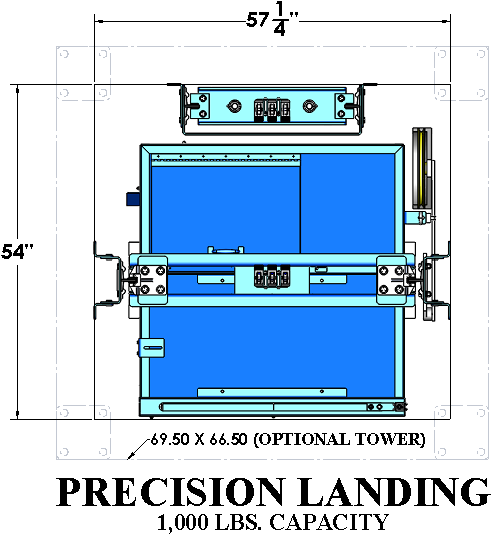

This technical drawing is for the 1000 lbs capacity elevator.
The inside dimensions of the completed cab of the Precision Landing Elevator are:
1,000 lb. capacity – 42” wide, 43-3/8” deep, 82-5/8” tall
650 lb. capacity – 34-3/4” wide, 34-3/4” deep, 82-5/8” tall
350 lb. capacity – 27” wide, 28-3/8” deep, 82-5/8” tall
